The Need for a URL Shortener

A social media platform faced a challenge: users shared long URLs that cluttered posts and messages.

The solution? A URL shortener, like Bitly or TinyURL, that converts long URLs into short, easily shareable links.

But how do we design a scalable, efficient, and fault-tolerant URL shortener that handles millions of requests per second?

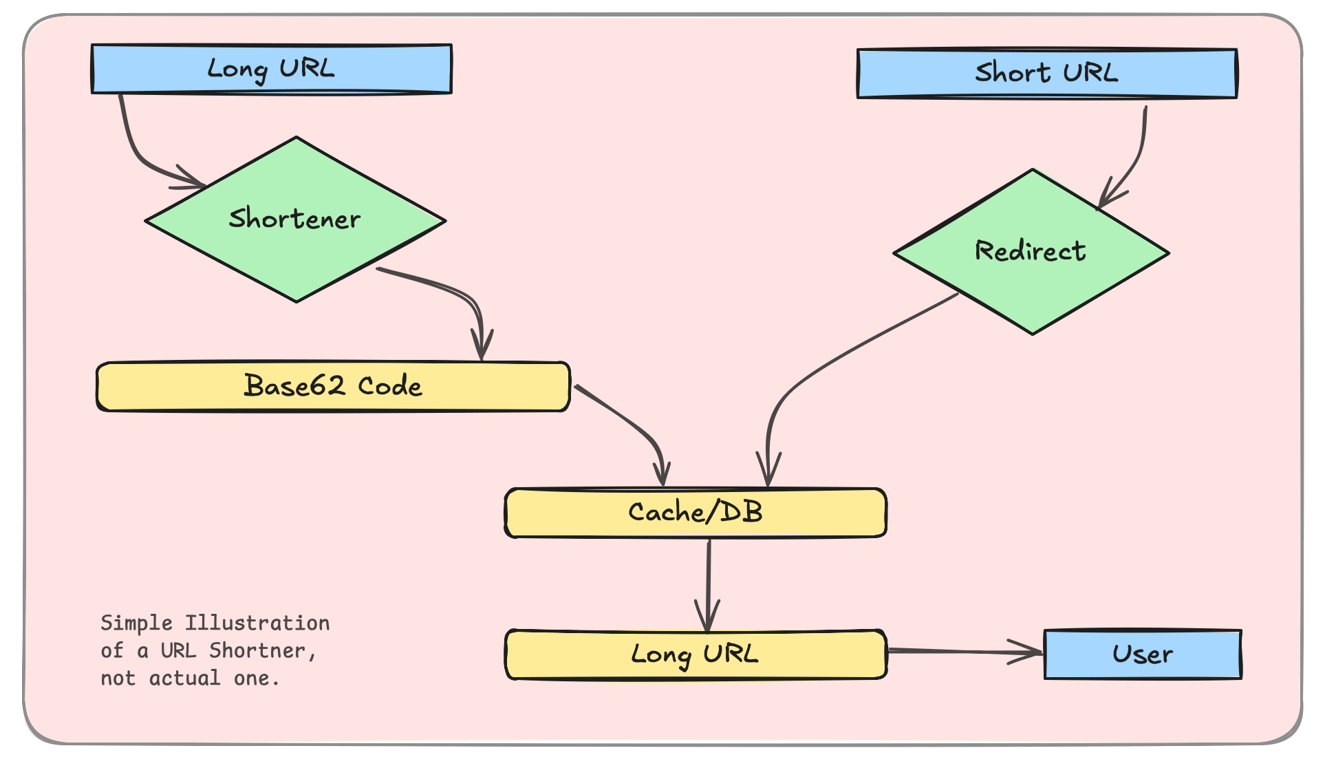

How a URL Shortener Works

A URL shortener maps a long URL to a short, unique identifier.

Example:

Original: https://example.com/articles/designing-url-shorteners
Shortened: https://short.ly/abc123

Key Steps:

1. User submits a long URL.

2. System generates a unique short code.

3. Shortened URL is stored in a database.

4. Users are redirected when they access the short URL.



Generating Unique Short Codes

Short codes must be unique, short, and collision-free.

1. Hashing-Based Approach

• Uses hash functions (e.g., MD5, SHA-256) to generate unique IDs.

• Example: Hashing https://example.com/article-123 produces e9a2b5.

• Problem: Hash collisions may occur, requiring a collision resolution strategy.

2. Base62 Encoding

• Converts a numeric ID into an alphanumeric string (a-z, A-Z, 0-9).

• Example: ID 123456789 → Base62 → d3Zc1.

• Advantage: Shorter, human-readable, and URL-safe.

Example Code (Python Base62 Encoding):

const encode = (number) => {
  const characters = "0123456789abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ";
  const base = characters.length;
  let encoded = "";

  while (number > 0) {
    let remainder = number % base; // Use let here
    number = Math.floor(number / base);
    encoded = characters[remainder] + encoded;
  }

  return encoded;
};

Choosing the Right Database

A URL shortener must store and retrieve short URLs efficiently, even at high scale.

Database Choices:

• Relational Databases (PostgreSQL, MySQL) – Works well for small-scale apps but struggles at high read/write loads.

• NoSQL Databases (Redis, DynamoDB, Cassandra) – Handles high traffic, fast lookups, and distributed storage.

• Key-Value Stores (Redis, Memcached) – Ideal for caching frequently accessed URLs.

Example Data Schema (SQL):

CREATE TABLE short_urls (
  id BIGINT PRIMARY KEY AUTO_INCREMENT,
  short_code VARCHAR(10) UNIQUE,
  original_url TEXT NOT NULL,
  created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

Redirection Optimization – Handling High Traffic

A URL shortener must handle millions of redirects per second with minimal latency.

1. Caching for Faster Lookups

• Store frequently accessed URLs in Redis for fast retrieval.

• Cache eviction policies (LRU, LFU) manage memory efficiently.

• Example: short.ly/abc123 → Redis cache → URL retrieved instantly.

Example Redis Lookup:

import redis
r = redis.Redis()

# Store URL in cache
r.set("abc123", "https://example.com/articles/designing-url-shorteners")

# Retrieve URL
url = r.get("abc123")

2. Load Balancing

• Use Nginx, HAProxy to distribute traffic across multiple servers.

• Round-robin or least-connections strategy ensures even load distribution.

Example:

User requests → Load Balancer → Redirect handled by multiple backend servers

3. Distributed Systems for Scalability

• Sharding: Distributes data across multiple database nodes.

• Replication: Ensures redundancy for high availability.

• CDNs: Cache redirects at the edge for global performance.

Real-World Challenges & Solutions

1. Handling Expiring & Custom URLs

• Allow users to set expiration times for short links.

• Support custom short URLs (e.g., short.ly/my-product).

2. Preventing Abuse & Spam

• Implement rate limiting to prevent bot-generated links.

• Scan URLs for malicious content before shortening.

3. Analytics & Tracking

• Track click-through rates, location, device type.

• Store logs in BigQuery, Snowflake, or Elasticsearch.

Example Tracking Schema:

CREATE TABLE url_clicks (
  short_code VARCHAR(10),
  clicked_at TIMESTAMP,
  user_ip VARCHAR(45),
  user_agent TEXT
);

Choosing the Right Architecture

Component

Best Choice

Short Code Generation

Base62 Encoding

Database

Redis (cache), DynamoDB (persistent)

Redirection Optimization

Caching + Load Balancing

Scaling Strategy

Sharding + Replication

Security

Rate limiting + Spam detection

Real-World Use Cases

1. Social Media & Content Sharing

• Twitter, LinkedIn use URL shorteners for compact links.

• Bitly & TinyURL optimize social media sharing.

2. Marketing & Campaign Tracking

• Marketers use shortened links to track engagement.

• UTM parameters capture campaign effectiveness.

3. Affiliate & Referral Links

• E-commerce sites shorten URLs for affiliate tracking.

• Amazon generates short URLs for product promotions.

Conclusion

A scalable URL shortener requires efficient hashing, optimized databases, and fast redirection handling.

• Base62 Encoding generates short, unique codes.

• Redis + NoSQL provides fast lookups and scalability.

• Caching & Load Balancing ensures high availability.

Next, we’ll explore Designing a Video Streaming Service – Video Encoding, Storage, Caching, CDN, Bitrate Adaptation.
